16056 MA

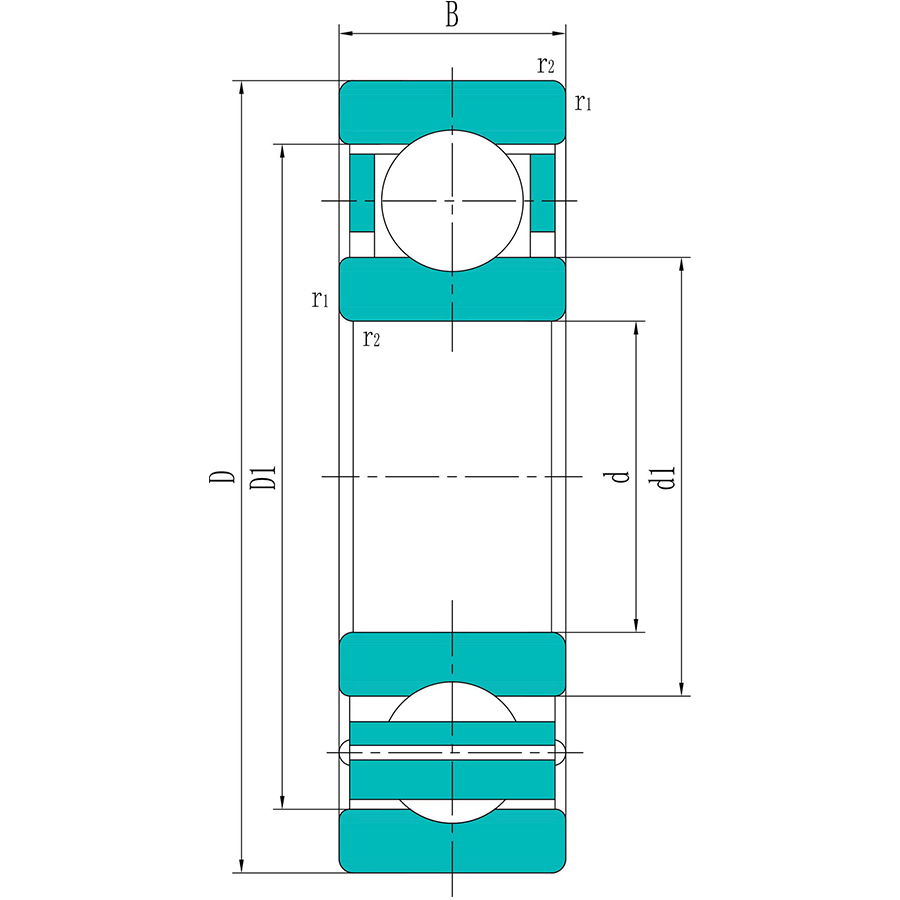

Outer diameter (D): 420 mm
Inner diameter (d): 280 mm
Width (B): 44 mm
Basic dynamic load rating : 242 KN
Basic static load rating: 335 KN
Product Description
Outer diameter (D):
420 mm
Inner diameter (d):
280 mm
Width (B):
44 mm
Basic dynamic load rating :
242 KN
Basic static load rating:
335 KN
Fatigue load limit (Pu):
7.5 KN
Reference speed :
3000 r/min
Limiting speed :
2600 r/min
Shoulder diameter (d1):
327 mm
Shoulder diameter (d2):
-
Shoulder diameter (D1):
374 mm
Recess diameter (D2):
-
Chamfer dimension (r1,2):
3 mm
Mass:
23.5 kg
