16060 MA

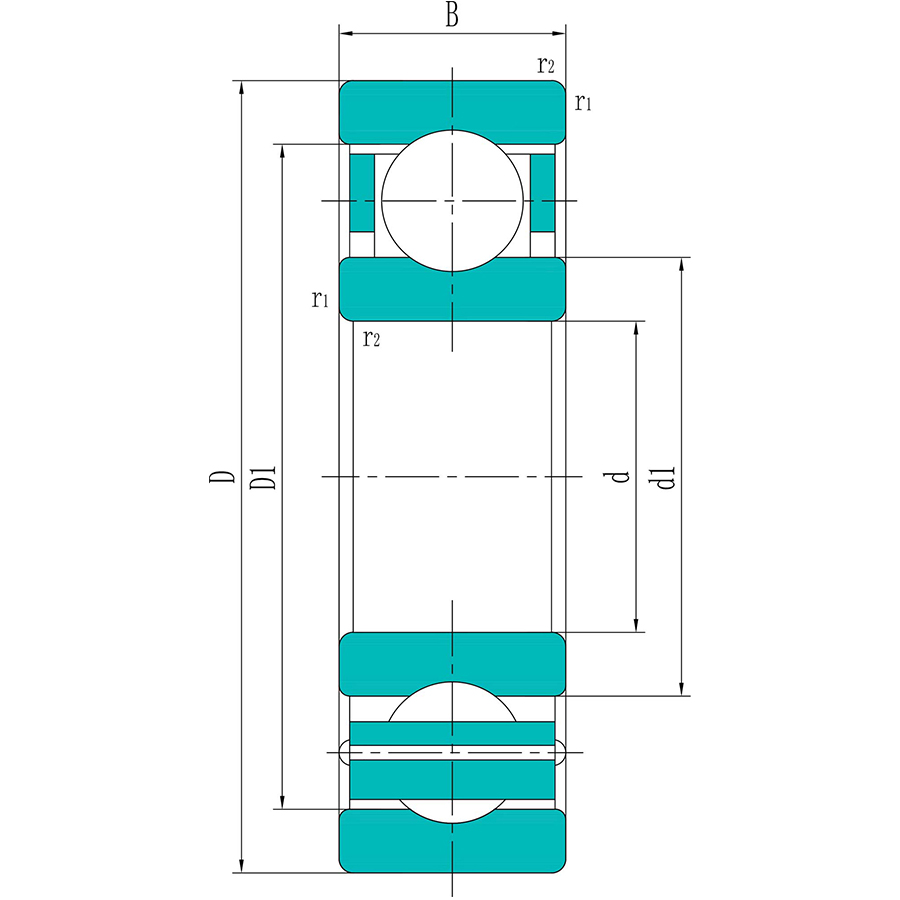

Outer diameter (D): 460 mm
Inner diameter (d): 300 mm
Width (B): 50 mm
Basic dynamic load rating : 286 KN
Basic static load rating: 405 KN
Product Description
Outer diameter (D):
460 mm
Inner diameter (d):
300 mm
Width (B):
50 mm
Basic dynamic load rating :
286 KN
Basic static load rating:
405 KN
Fatigue load limit (Pu):
8.8 KN
Reference speed :
2800 r/min
Limiting speed :
1800 r/min
Shoulder diameter (d1):
352 mm
Shoulder diameter (d2):
-
Shoulder diameter (D1):
407 mm
Recess diameter (D2):
-
Chamfer dimension (r1,2):
4 mm
Mass:
32 kg
