6048 M

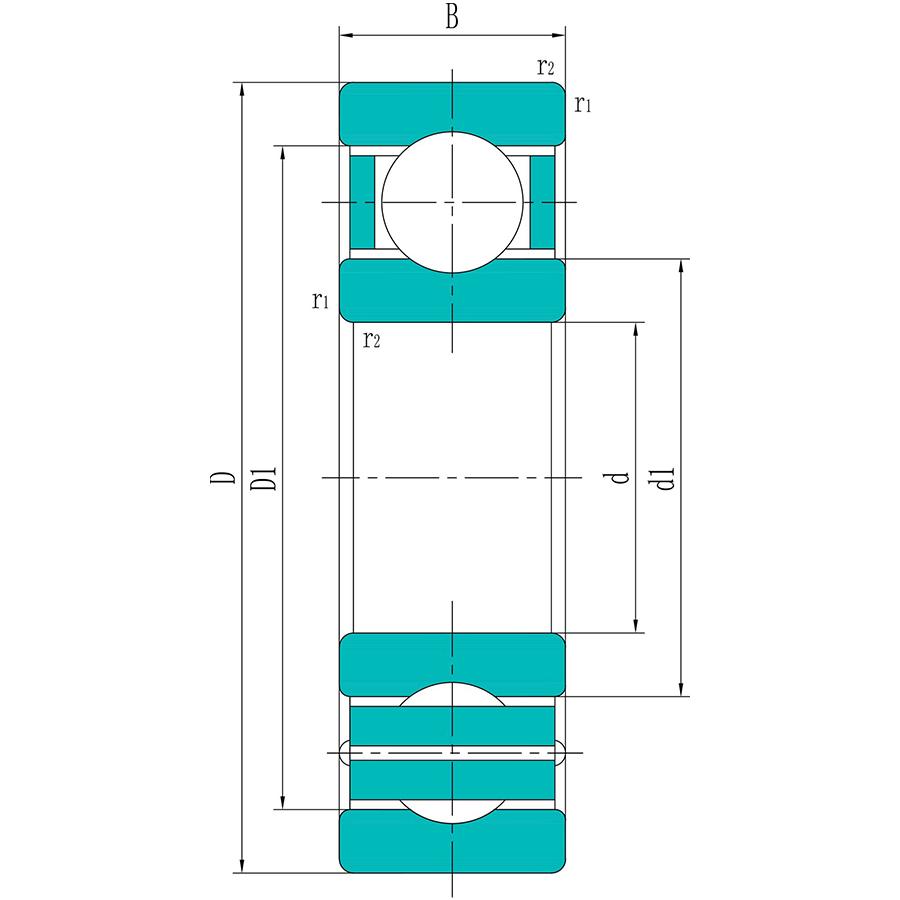

Outer diameter (D): 360 mm
Inner diameter (d): 240 mm
Width (B): 56 mm
Basic dynamic load rating : 255 KN
Basic static load rating: 315 KN
Product Description
Outer diameter (D):
360 mm
Inner diameter (d):
240 mm
Width (B):
56 mm
Basic dynamic load rating :
255 KN
Basic static load rating:
315 KN
Fatigue load limit (Pu):
7.8 KN
Reference speed :
3600 r/min
Limiting speed :
3000 r/min
Shoulder diameter (d1):
277 mm
Shoulder diameter (d2):
-
Shoulder diameter (D1):
322 mm
Recess diameter (D2):
-
Chamfer dimension (r1,2):
3 mm
Mass:
19.5 kg
