6052 M

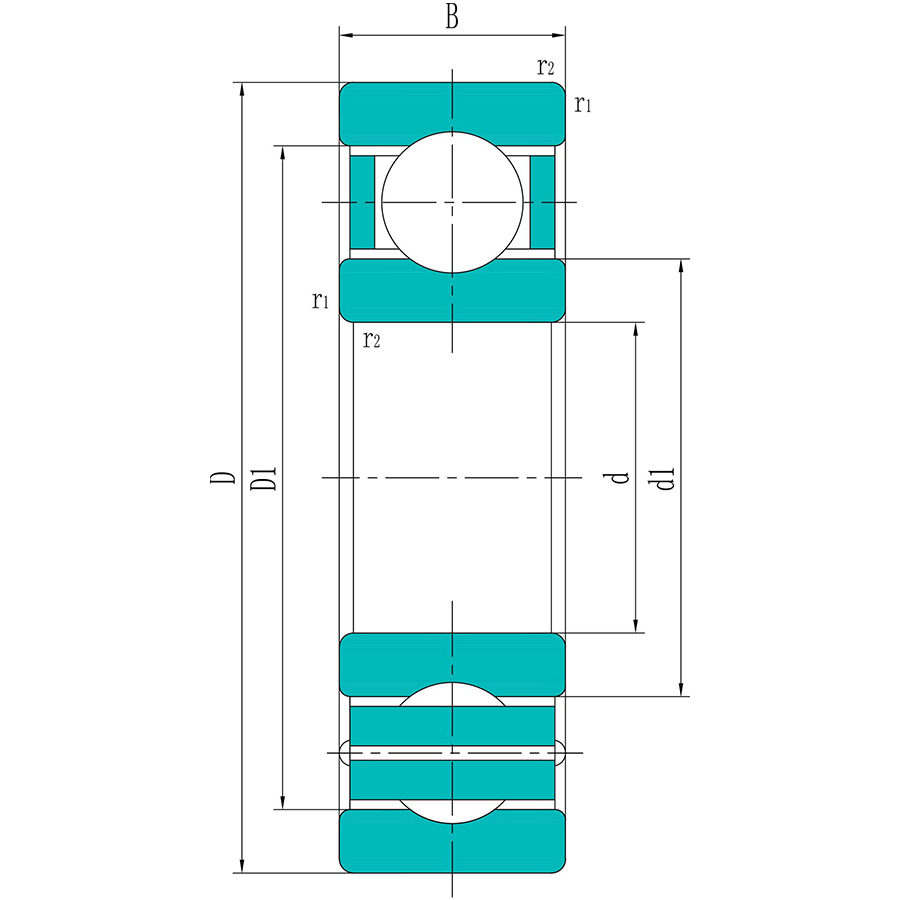

Outer diameter (D): 400 mm
Inner diameter (d): 260 mm
Width (B): 65 mm
Basic dynamic load rating : 291 KN
Basic static load rating: 375 KN
Product Description
Outer diameter (D):
400 mm
Inner diameter (d):
260 mm
Width (B):
65 mm
Basic dynamic load rating :
291 KN
Basic static load rating:
375 KN
Fatigue load limit (Pu):
8.8 KN
Reference speed :
3200 r/min
Limiting speed :
2800 r/min
Shoulder diameter (d1):
304 mm
Shoulder diameter (d2):
-
Shoulder diameter (D1):
356 mm
Recess diameter (D2):
-
Chamfer dimension (r1,2):
4 mm
Mass:
29 kg
