6060 M

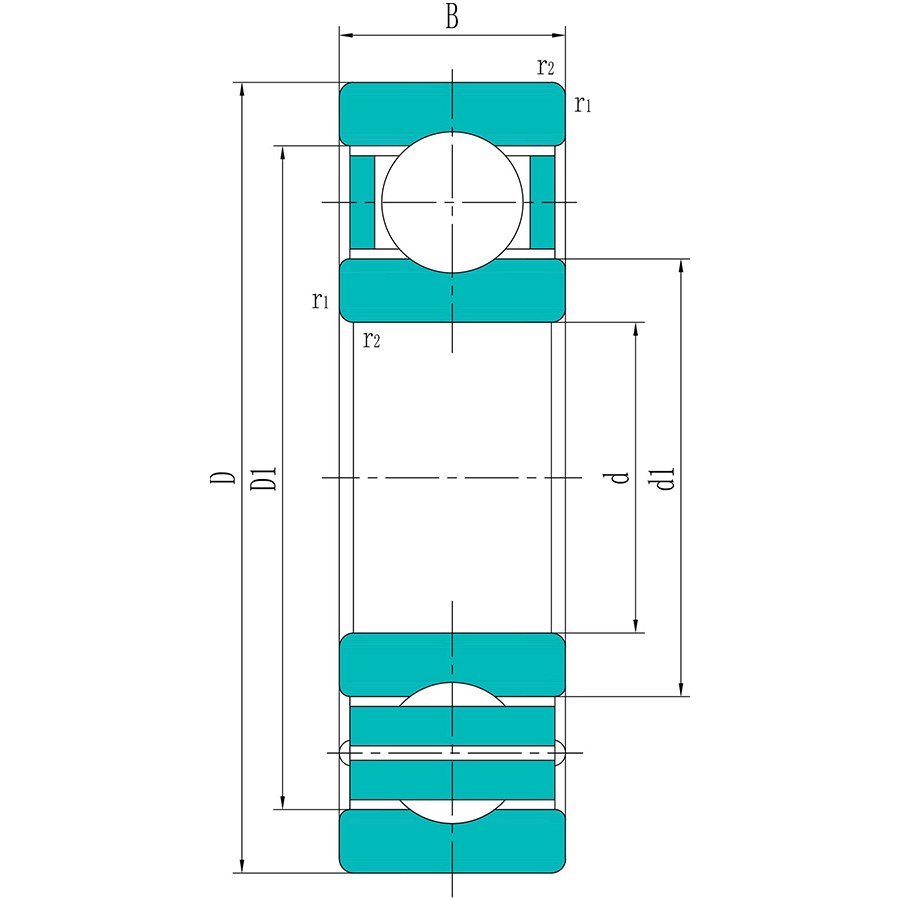

Outer diameter (D): 460 mm
Inner diameter (d): 300 mm
Width (B): 74 mm
Basic dynamic load rating : 358 KN
Basic static load rating: 500 KN
Product Description
Outer diameter (D):
460 mm
Inner diameter (d):
300 mm
Width (B):
74 mm
Basic dynamic load rating :
358 KN
Basic static load rating:
500 KN
Fatigue load limit (Pu):
10.8 KN
Reference speed :
2800 r/min
Limiting speed :
2400 r/min
Shoulder diameter (d1):
351 mm
Shoulder diameter (d2):
-
Shoulder diameter (D1):
409 mm
Recess diameter (D2):
-
Chamfer dimension (r1,2):
4 mm
Mass:
44 kg
