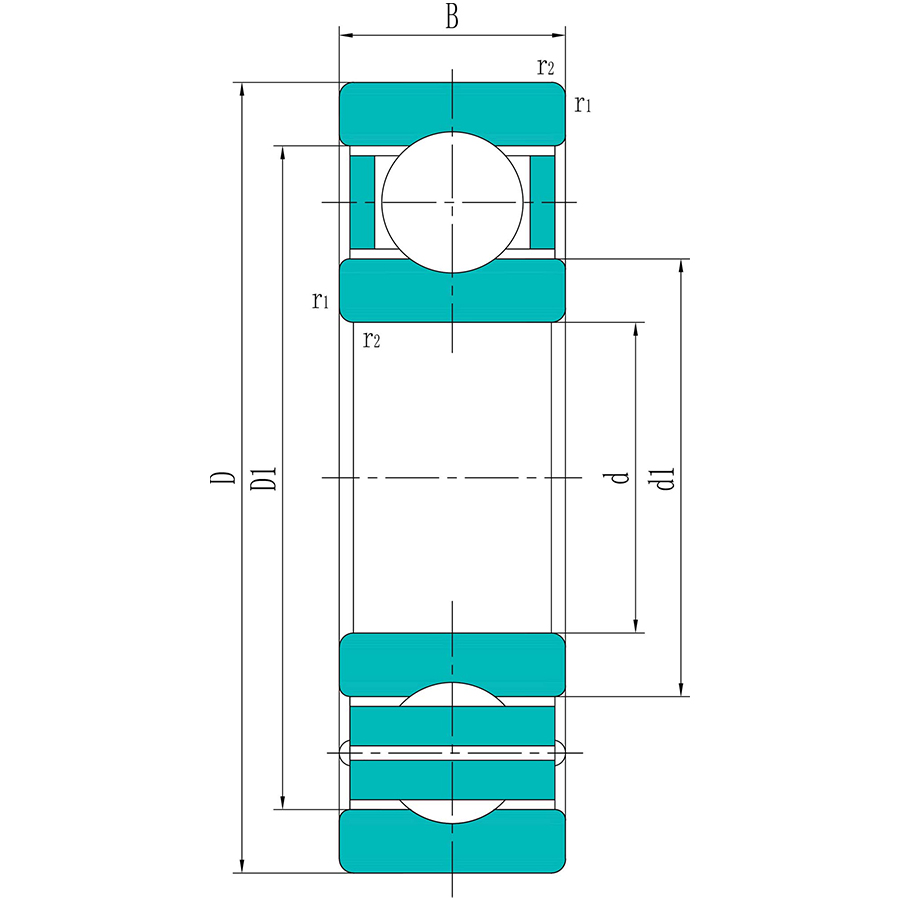

6064 M
Outer diameter (D): 480 mm
Inner diameter (d): 320 mm
Width (B): 74 mm
Basic dynamic load rating : 371 KN
Basic static load rating: 540 KN
Product Description
Outer diameter (D):
480 mm
Inner diameter (d):
320 mm
Width (B):
74 mm
Basic dynamic load rating :
371 KN
Basic static load rating:
540 KN
Fatigue load limit (Pu):
11.4 KN
Reference speed :
2600 r/min
Limiting speed :
2200 r/min
Shoulder diameter (d1):
372 mm
Shoulder diameter (d2):
-
Shoulder diameter (D1):
428 mm
Recess diameter (D2):
-
Chamfer dimension (r1,2):
4 mm
Mass:
46 kg
