61856 MA

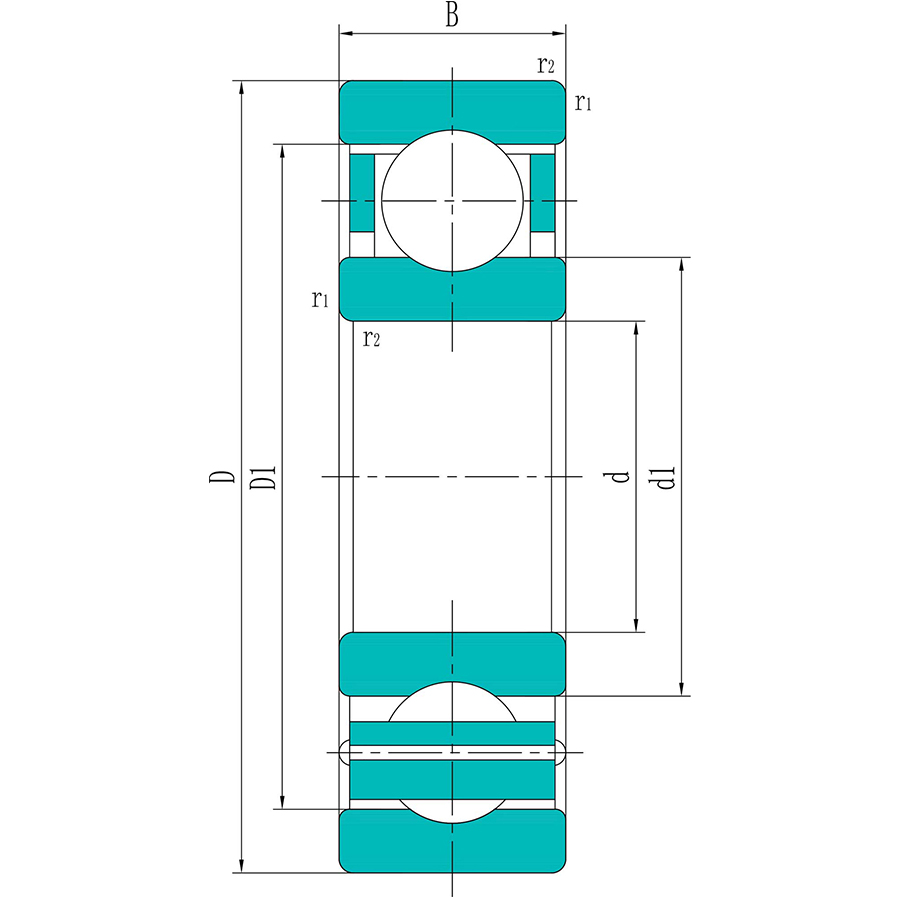

Outer diameter (D): 350 mm
Inner diameter (d): 280 mm
Width (B): 33 mm
Basic dynamic load rating : 138 KN
Basic static load rating: 200 KN
Product Description
Outer diameter (D):
350 mm
Inner diameter (d):
280 mm
Width (B):
33 mm
Basic dynamic load rating :
138 KN
Basic static load rating:
200 KN
Fatigue load limit (Pu):
4.75 KN
Reference speed :
3400 r/min
Limiting speed :
2800 r/min
Shoulder diameter (d1):
302 mm
Shoulder diameter (d2):
-
Shoulder diameter (D1):
328 mm
Recess diameter (D2):
-
Chamfer dimension (r1,2):
3.8 mm
Mass:
7.25 kg
