61864 MA

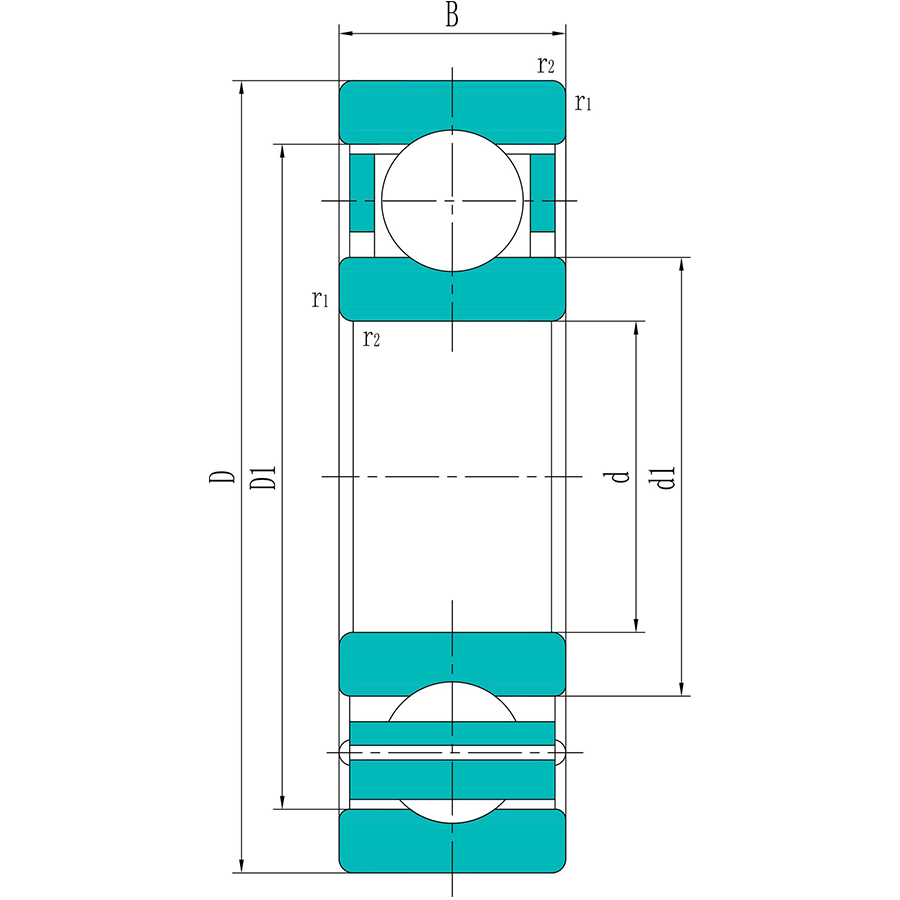

Outer diameter (D): 400 mm
Inner diameter (d): 320 mm
Width (B): 38 mm
Basic dynamic load rating : 172 KN
Basic static load rating: 255 KN
Product Description
Outer diameter (D):
400 mm
Inner diameter (d):
320 mm
Width (B):
38 mm
Basic dynamic load rating :
172 KN
Basic static load rating:
255 KN
Fatigue load limit (Pu):
5.7 KN
Reference speed :
3000 r/min
Limiting speed :
2400 r/min
Shoulder diameter (d1):
345 mm
Shoulder diameter (d2):
-
Shoulder diameter (D1):
376 mm
Recess diameter (D2):
-
Chamfer dimension (r1,2):
2.1 mm
Mass:
44 kg
