61956 MA

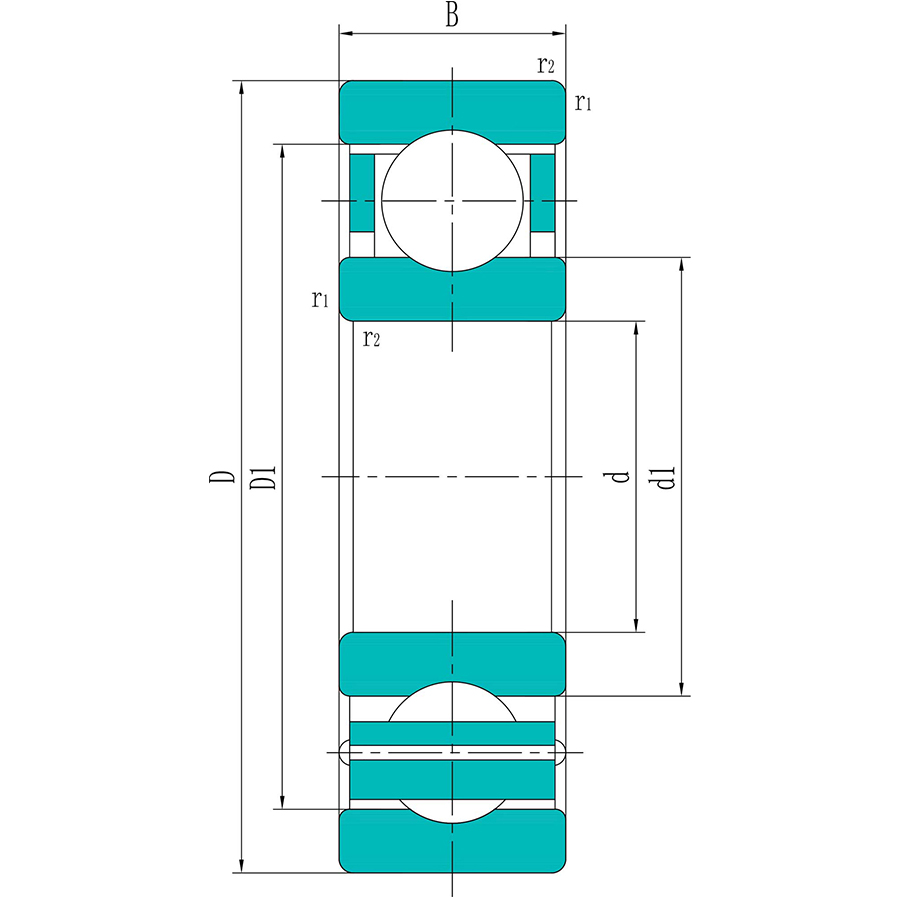

Outer diameter (D): 380 mm
Inner diameter (d): 280 mm
Width (B): 46 mm
Basic dynamic load rating : 216 KN
Basic static load rating: 285 KN
Product Description
Outer diameter (D):
380 mm
Inner diameter (d):
280 mm
Width (B):
46 mm
Basic dynamic load rating :
216 KN
Basic static load rating:
285 KN
Fatigue load limit (Pu):
6.7 KN
Reference speed :
3200 r/min
Limiting speed :
2800 r/min
Shoulder diameter (d1):
311 mm
Shoulder diameter (d2):
-
Shoulder diameter (D1):
350 mm
Recess diameter (D2):
-
Chamfer dimension (r1,2):
2.1 mm
Mass:
15.5 kg
