61964 MA
Outer diameter (D): 440 mm
Inner diameter (d): 320 mm
Width (B): 56 mm
Basic dynamic load rating : 276 KN
Basic static load rating: 400 K

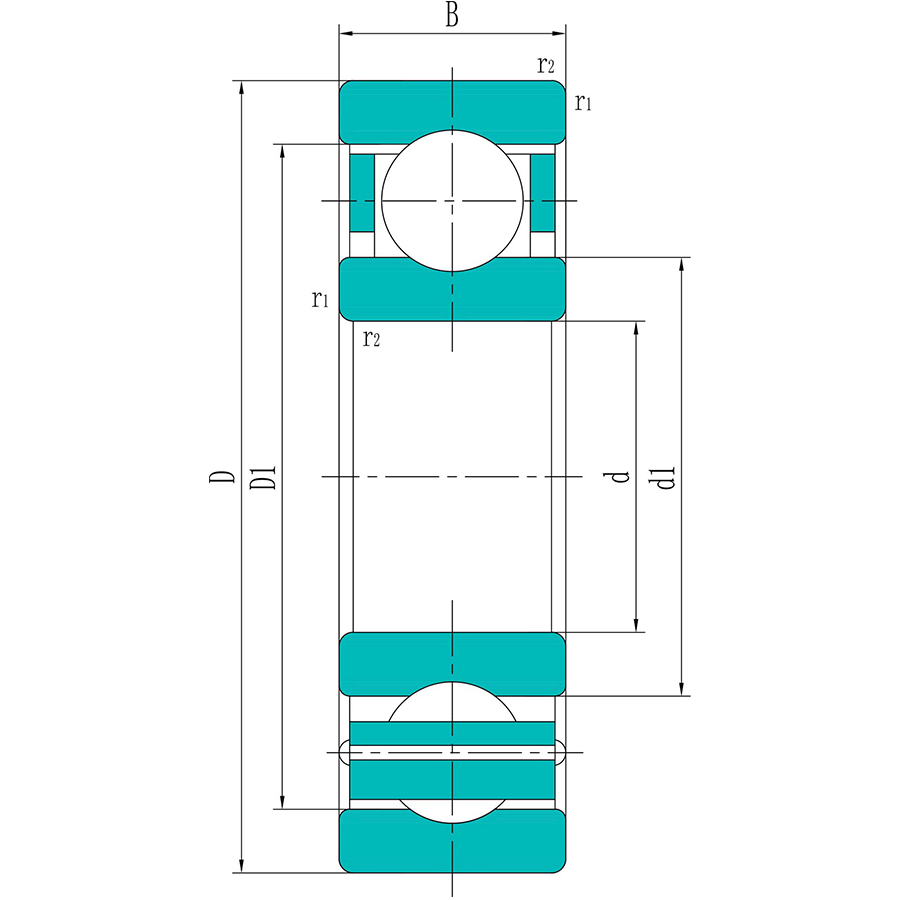

Product Description
Outer diameter (D):
440 mm
Inner diameter (d):
320 mm
Width (B):
56 mm
Basic dynamic load rating :
276 KN
Basic static load rating:
400 K
Fatigue load limit (Pu):
8.65 KN
Reference speed :
2800 r/min
Limiting speed :
2400 r/min
Shoulder diameter (d1):
357 mm
Shoulder diameter (d2):
-
Shoulder diameter (D1):
4.3 mm
Recess diameter (D2):
-
Chamfer dimension (r1,2):
3 mm
Mass:
25.5 kg
