6238 M
Outer diameter (D): 340 mm
Inner diameter (d): 190 mm
Width (B): 55 mm
Basic dynamic load rating : 255 KN
Basic static load rating: 280 KN
Product Description

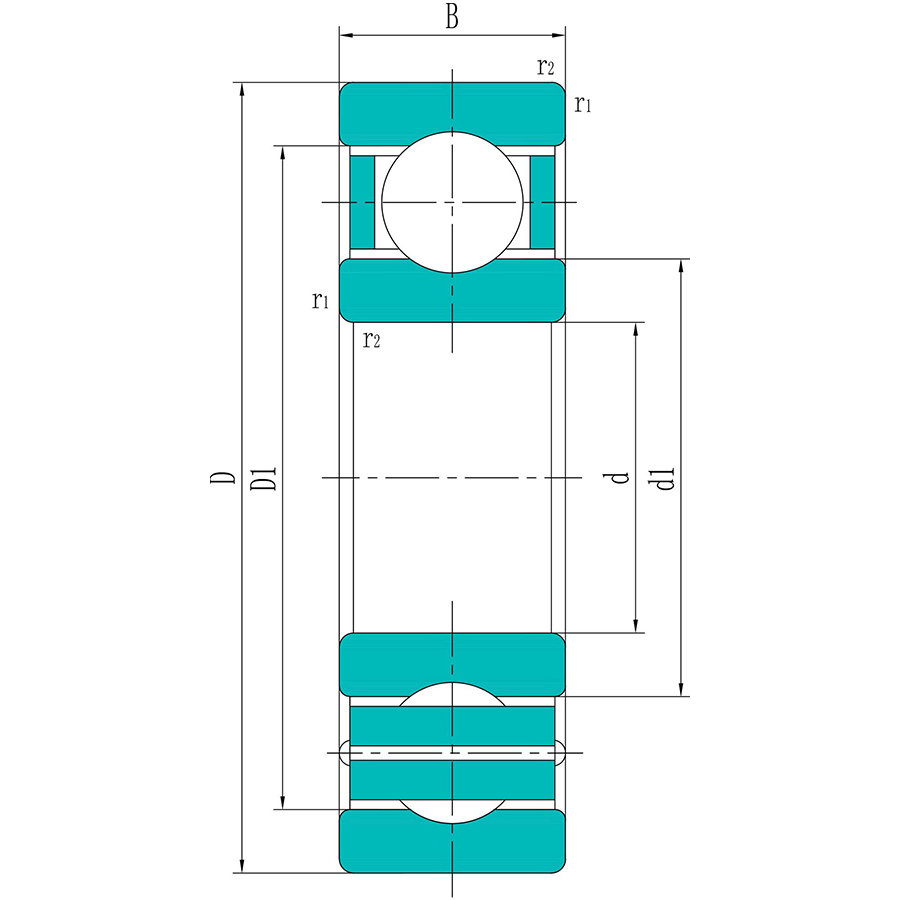

Outer diameter (D):
340 mm
Inner diameter (d):
190 mm
Width (B):
55 mm
Basic dynamic load rating :
255 KN
Basic static load rating:
280 KN
Fatigue load limit (Pu):
7.35 KN
Reference speed :
3800 r/min
Limiting speed :
3400 r/min
Shoulder diameter (d1):
239 mm
Shoulder diameter (d2):
-
Shoulder diameter (D1):
290 mm
Recess diameter (D2):
-
Chamfer dimension (r1,2):
4 mm
Mass:
21.5 kg
