6248 M
Outer diameter (D): 440 mm
Inner diameter (d): 240 mm
Width (B): 72 mm
Basic dynamic load rating : 358 KN
Basic static load rating: 465 KN
Product Description

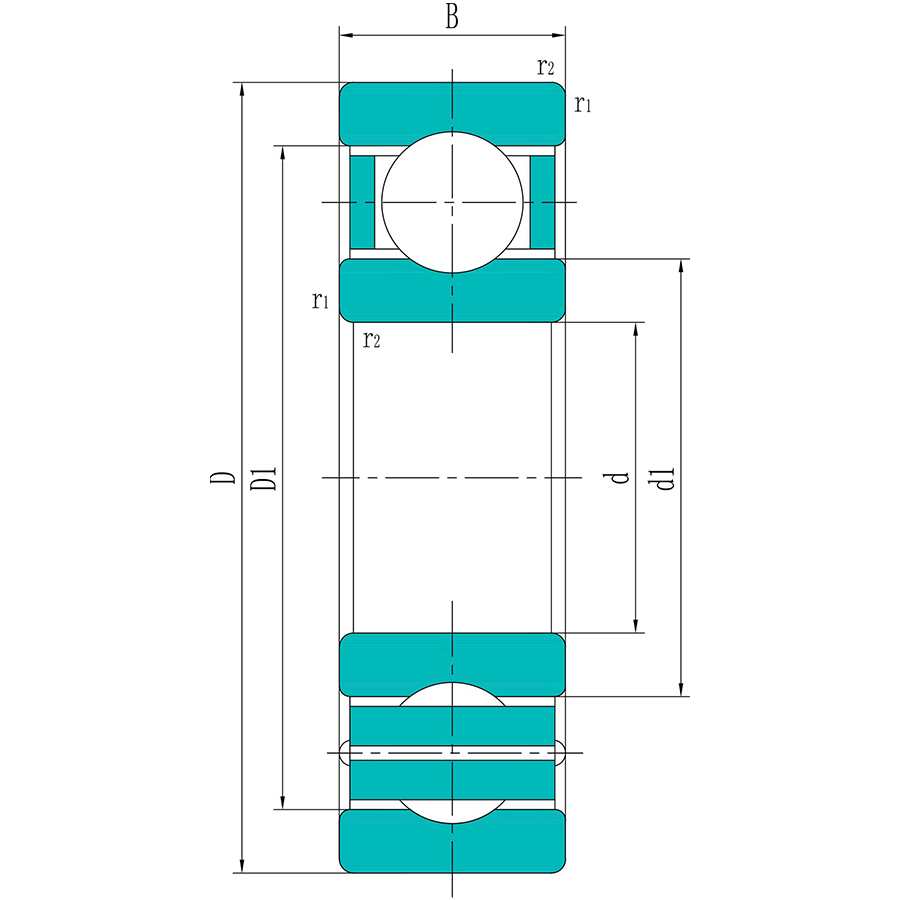

Outer diameter (D):
440 mm
Inner diameter (d):
240 mm
Width (B):
72 mm
Basic dynamic load rating :
358 KN
Basic static load rating:
465 KN
Fatigue load limit (Pu):
10.8 KN
Reference speed :
3000 r/min
Limiting speed :
2600 r/min
Shoulder diameter (d1):
309 mm
Shoulder diameter (d2):
-
Shoulder diameter (D1):
371 mm
Recess diameter (D2):
-
Chamfer dimension (r1,2):
4 mm
Mass:
51 kg
