6260 M

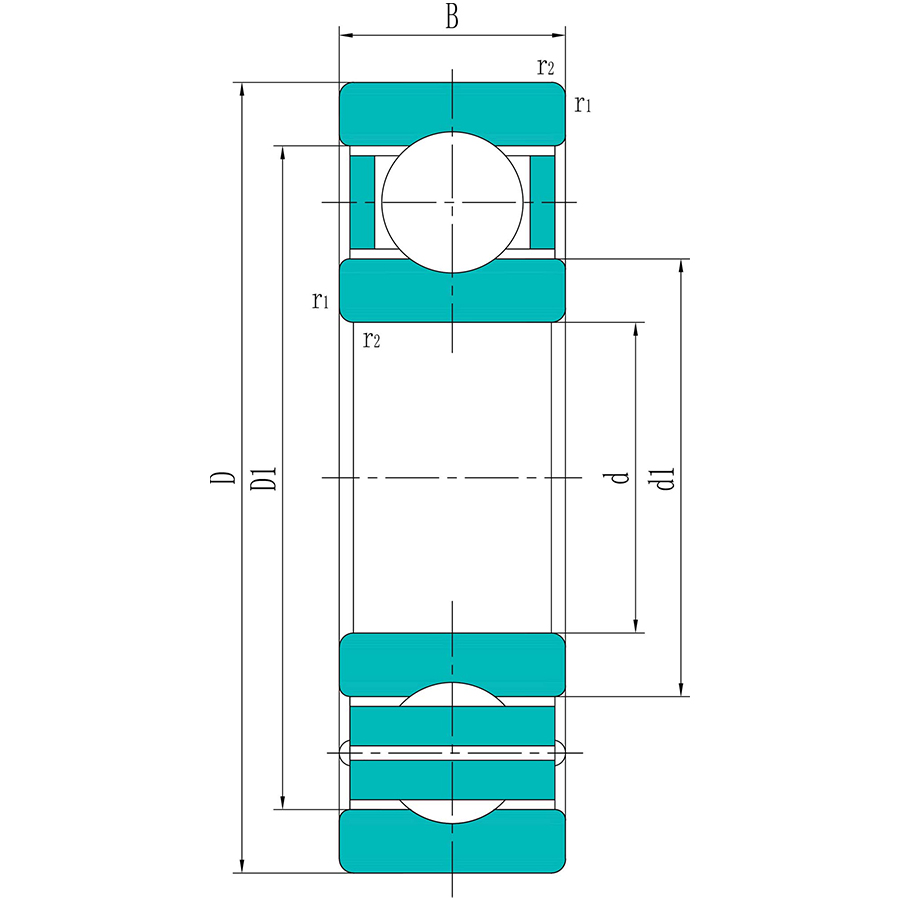

Outer diameter (D): 540 mm
Inner diameter (d): 300 mm
Width (B): 85 mm
Basic dynamic load rating : 462 KN
Basic static load rating: 670 KN
Product Description
Outer diameter (D):
540 mm
Inner diameter (d):
300 mm
Width (B):
85 mm
Basic dynamic load rating :
462 KN
Basic static load rating:
670 KN
Fatigue load limit (Pu):
13.7 KN
Reference speed :
2400 r/min
Limiting speed :
2000 r/min
Shoulder diameter (d1):
353 mm
Shoulder diameter (d2):
-
Shoulder diameter (D1):
457 mm
Recess diameter (D2):
-
Chamfer dimension (r1,2):
5 mm
Mass:
88.5 kg
